Four straight series E Interceptors in different sizes.

INTERCEPTORS PRO

Zipwake PRO combines ultra-fast performance with unmatched flexibility in interceptor choice.

One System. Endless Possibilities.

Zipwake PRO gives you the freedom to build the perfect Dynamic Trim Control System for your boat – by combining interceptors from both the Series S PRO and Series E PRO ranges.

Whether you need compact interceptors for tight spaces or larger blades for bigger loads, the PRO system lets you mix and match components to suit your exact transom layout and performance needs. With 25 different interceptors to choose from, there’s a solution for virtually every boat – and every challenge on the water.

Unmatched Speed. Unrivaled Control.

PRO interceptors move up to 5x faster than previous models, 0–100 % in just 0.3 seconds. This next-level speed allows for instant trim and roll adjustments — delivering smoother rides, greater fuel efficiency, and enhanced safety, even in the most dynamic conditions.



0–100 % in

0.3 SECONDS

SERIES S PRO

For boats up to 50 ft
Slim, compact, and precise – Series S PRO interceptors feature a 30 mm blade stroke and are ideal for boats up to 50 feet, especially where transom space is limited.
Includes 13 fast-acting interceptors: four straight, four V-shaped, four chine, and one intermediate.



SERIES E PRO

For boats up to 100 ft
Built for performance and power – Series E PRO features a 60 mm blade stroke and suits larger boats or high-demand installations.
Includes 12 robust interceptors: four straight, three tunnel, one round, and four chine.



INTERCEPTOR MODELS

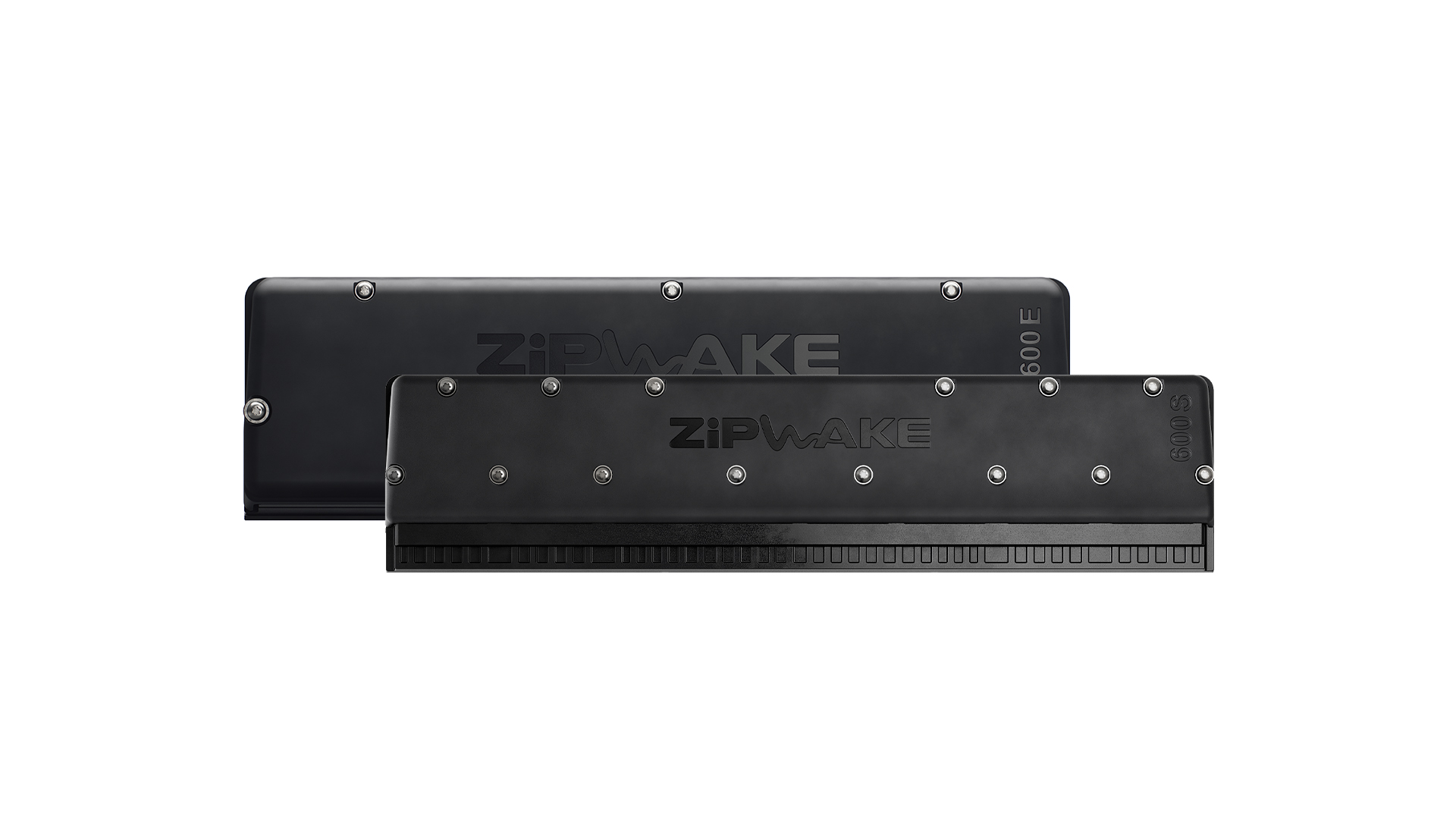

STRAIGHT INTERCEPTORS

We offer straight interceptors available in both Series S and Series E. The S series is more compact and lightweight, with a blade depth of 30 mm. The E series is sturdier and features a blade that extends 60 mm. Straight interceptors come in a wide range of sizes including the following models, Series S: IT300-S, IT450-S, IT600-S and IT750-S. Series E: IT400-E, IT600-E, IT800-E and IT1000-E

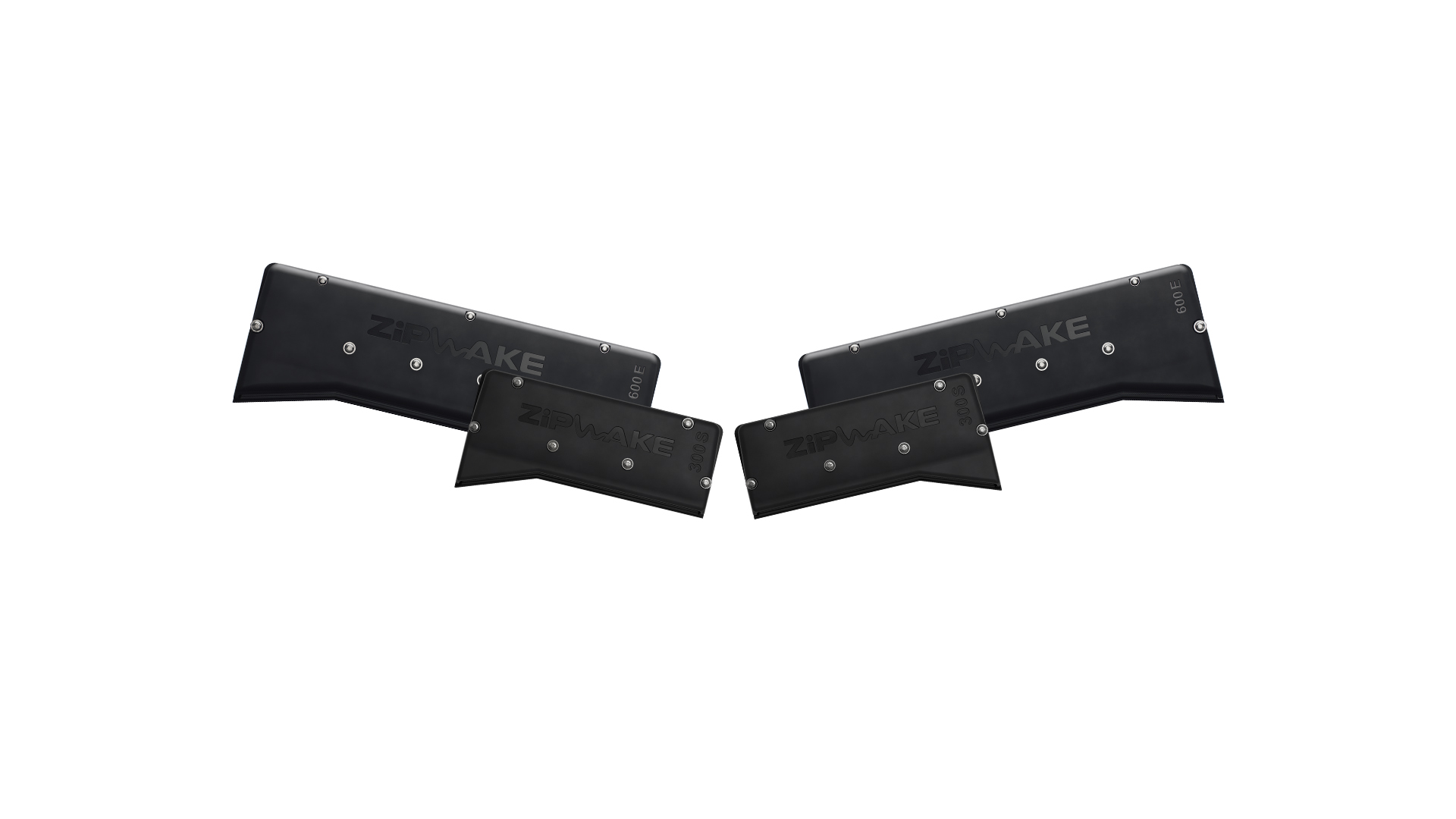

CHINE INTERCEPTORS

Chine interceptors provide a unique means of maximizing pitch and roll motion control by utilizing the furthest outboard surfaces of the hull bottom for lift generation. As a rule, the lift effect of a chine interceptor matches the lift of a straight interceptor one size larger mounted inboard of the chine, making them the go-to choice when selecting interceptors.

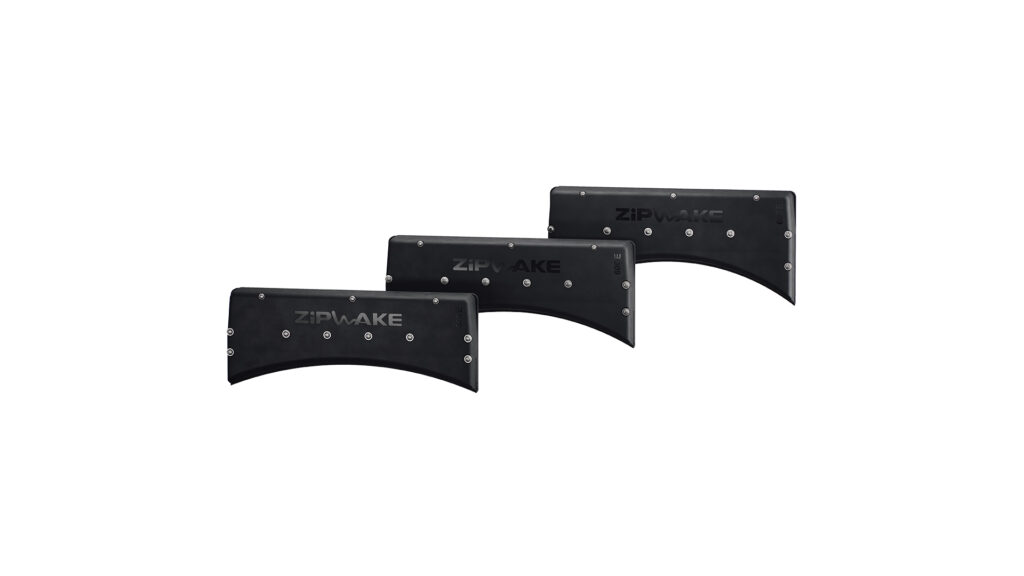

TUNNEL INTERCEPTORS

Tunnel-shaped interceptors provide the perfect lift-force solution for hulls with propeller tunnels. In contrast to straight interceptors, the tunnel interceptor’s constant radius curvature allows mounting above the propeller tunnel to fully or partially use the otherwise unutilized part of the beam for lift generation. The three tunnel models with different radii, R500, R600 and R800.

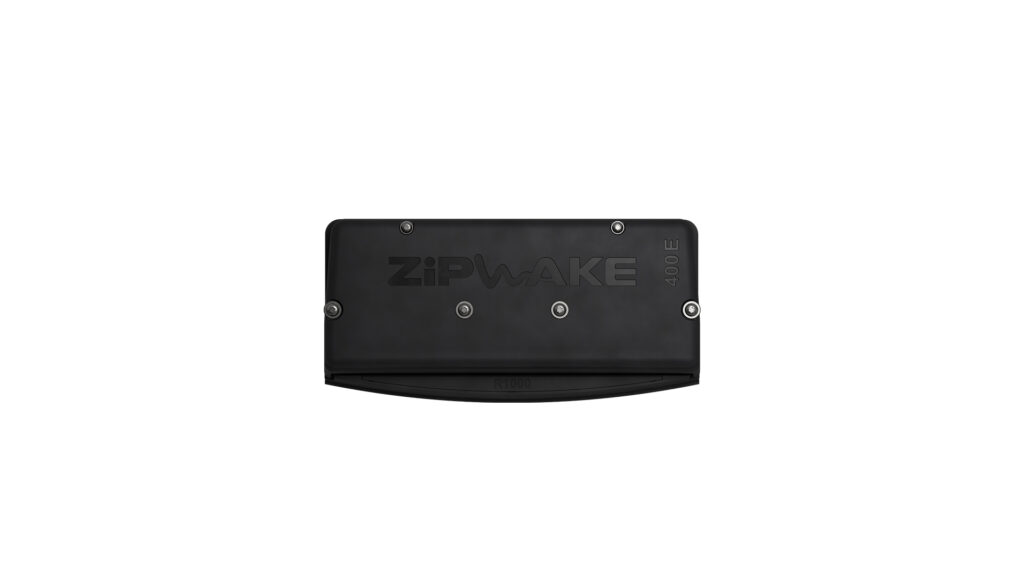

ROUND INTERCEPTORS

The curved interceptor provides a solution for vessels with convex hulls, complementing our extensive range of straight, tunnel, V-shaped, and chine interceptors. The possibility of rounded hulls having a curved interceptor results in faster and more precise trim control. With the latest addition of the curve interceptor, we can now provide an efficient solution that fits virtually any hull.

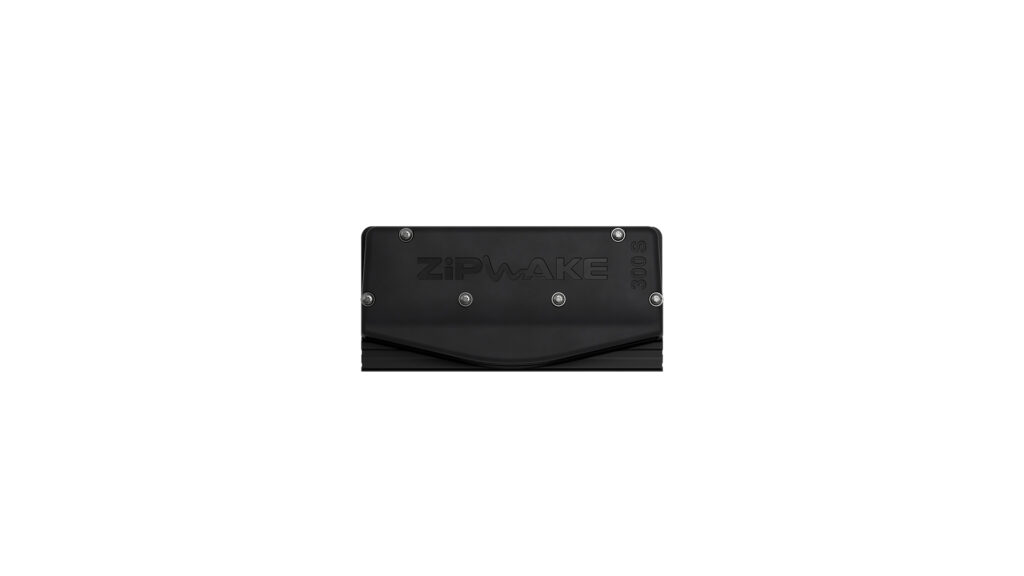

INTERMEDIATE INTERCEPTORS

When space between multiple outboards or sterndrives is tight, an intermediate interceptor offers a viable alternative for additional pitch and roll motion control not possible with a straight interceptor without degrading propeller performance. Thanks to their special blade shape, intermediate interceptors generate a narrower trail, thus mitigating propeller inflow disturbance and even allowing installation between outboards mounted at their minimum offset.

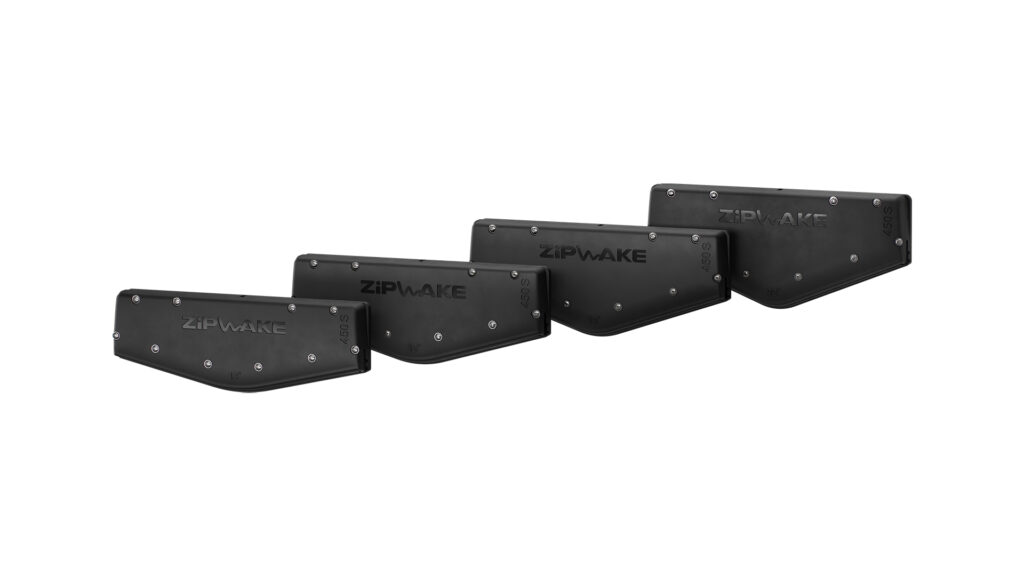

V-SHAPED INTERCEPTORS

V-shaped interceptors for centerline mounting are perfect for filling the gap between twin outboards or sterndrives, as well as dual propeller tunnels. The four V-shaped models cover deadrise angles effectively between 11 to 24 degrees.



FAST ACTUATION

MODULAR DESIGN

OUTBOARD MOUNT

NO CORROSIVE MATERIALS

  • True outboard mount
  • Modular design
  • Fast actuation
  • Integrated mounting plate
  • Thru hull fitting options - Above waterline - Concealed behind interceptor
  • Submersible servo units
  • Brushless 12-24V DC servo motor
  • Durable and accessible
  • Calibration free
  • Auto Cleaning - Selectable periodic cleaning cycle - Prevents fouling inside the interceptor
  • No corrosive materials

SPECIFICATIONS SERIES E PRO

Model
IT400-E PRO / IT600-E PRO / IT800-E PRO / IT1000-E PRO
Length mm (in)
400 (15.7) / 600 (23.6) / 800 (31.5) / 1000 (39.4)
Weight kg (lbs)
5.0 (11.0) / 7.3 (16.1) / 9.2 (20.3) / 11.5 (25.4)
Servo actuator
SU-400E PRO/ SU-E PRO / SU-E PRO / SU-E PRO
Max. Boat Speed
60 knots
Blade Stroke
60 mm (2.4 in)
Blade Rate
200 mm/s (7.9 in/s)
Thru-Hull Cable Fitting
Concealed or above waterline
Cable Length
3 m (10 ft), extendable up to 6 m (20 ft)
Cable Material
PUR
Connector
M12 5-pin circular
Connector Diameter
14.5 mm (0.57 in)
Operating Voltage
36 V DC
Power Consumption
35 W max/servo unit
Operating Temperature
0° to +40°C (+32° to +104°F)
Storage Temperature
-40° to +90°C (-40° to +194°F)
Waterproof Rating
IP68 5 m (16 ft)
Compliance
CE, FCC
Model
IT600-E PRO TUNNEL R500 / IT600-E PRO TUNNEL R600 / IT600-E PRO TUNNEL R800
Length mm (in)
600 (24) / 600 (24) / 600 (24)
Weight kg (lbs)
8.4 (18.5) / 8.2 (18.1) / 7.9 (17.4)
Servo actuator
SU-400E PRO / SU-E PRO / SU-E PRO
Max. Boat Speed
60 knots
Blade Stroke
60 mm (2.4 in)
Blade Rate
200 mm/s (7.9 in/s)
Thru-Hull Cable Fitting
Concealed or above waterline
Cable Length
3 m (10 ft), extendable up to 6 m (20 ft)
Cable Material
PUR
Connector
M12 5-pin circular
Connector Diameter
14.5 mm (0.57 in)
Operating Voltage
36 V DC
Power Consumption
35 W max/servo unit
Operating Temperature
0° to +40°C (+32° to +104°F)
Storage Temperature
-40° to +90°C (-40° to +194°F)
Waterproof Rating
IP68 5 m (16 ft)
Compliance
CE, FCC
Model
IT400-E PRO CHINE PORT / IT400-E CHINE PRO STBD / IT600-E PRO CHINE PORT / IT600-E PRO CHINE STBD
Length mm (in)
400 (15.7) / 400 (15.7) / 600 (24) / 600 (24)
Weight kg (lbs)
5.1 (11.2) / 5.1 (11.2) / 7.4 (16.3) / 7.4 (16.3)
Servo actuator
SU-400E PRO / SU-400E PRO / SU-E PRO / SU-E PRO
Max. Boat Speed
60 knots
Blade Stroke
60 mm (2.4 in)
Blade Rate
200 mm/s (7.9 in/s)
Thru-Hull Cable Fitting
Concealed or above waterline
Cable Length
3 m (10 ft), extendable up to 6 m (20 ft)
Cable Material
PUR
Connector
M12 5-pin circular
Connector Diameter
14.5 mm (0.57 in)
Supply Voltage
36 V DC
Power Consumption
35 W max/servo unit
Operating Temperature
0° to +40°C (+32° to +104°F)
Storage Temperature
-40° to +90°C (-40° to +194°F)
Waterproof Rating
IP68 5 m (16 ft)
Compliance
CE, FCC
Model
IT400-E PRO ROUND R1000
Length mm (in)
400 (15.7)
Weight kg (lbs)
5.2 (11.5)
Servo actuator
SU-400E PRO
Max. Boat Speed
60 knots
Blade Stroke
60 mm (2.4 in)
Blade Rate
200 mm/s (7.9 in/s)
Thru-Hull Cable Fitting
Concealed or above waterline
Cable Length
3 m (10 ft), extendable up to 6 m (20 ft)
Cable Material
PUR
Connector
M12 5-pin circular
Connector Diameter
14.5 mm (0.57 in)
Supply Voltage
36 V DC
Power Consumption
35 W max/servo unit
Operating Temperature
0° to +40°C (+32° to +104°F)
Storage Temperature
-40° to +90°C (-40° to +194°F)
Waterproof Rating
IP68 5 m (16 ft)
Compliance
CE, FCC

ORDERING DATA SERIES E PRO

Model
Part No.
IT400-E PRO
2022215 Comes with Cable 3 m and Cable Cover
IT600-E PRO
2022018 COMES WITH CABLE 3 M AND CABLE COVER
IT800-E PRO
2022019 COMES WITH CABLE 3 M AND CABLE COVER
IT1000-E PRO
2022020 COMES WITH CABLE 3 M AND CABLE COVER
  • Included in Kit Boxes
  • Available as an Accessory
  • Available as a Spare Part
Model
Part No.
IT600-E PRO TUNNEL R500
2022021 Comes with Cable 3 m and Cable Cover
IT600-E PRO TUNNEL R600
2022022 COMES WITH CABLE 3 M AND CABLE COVER
IT600-E PRO TUNNEL R800
2022023 COMES WITH CABLE 3 M AND CABLE COVER
  • Available as an Accessory
  • Available as a Spare Part
Model
Part No.
IT400-E PRO CHINE PORT
2022216 Comes with Cable 3 m and Cable Cover
IT400-E PRO CHINE STBD
2022217 COMES WITH CABLE 3 M AND CABLE COVER
IT600-E PRO CHINE PORT
2022024 COMES WITH CABLE 3 M AND CABLE COVER
IT600-E PRO CHINE STBD
2022025 COMES WITH CABLE 3 M AND CABLE COVER
  • Included in Kit Boxes
  • Available as an Accessory
  • Available as a Spare Part
Model
Part No.
IT400-E ROUND R1000
2012491 COMES WITH CABLE 3 M AND CABLE COVER
  • Included in Kit Boxes
  • Available as an Accessory
  • Available as a Spare Part

SPECIFICATIONS SERIES S PRO

Model
IT300-S PRO / IT450-S PRO / IT600-S PRO / IT750-S PRO
Length mm (in)
300 (12) / 450 (18) / 600 (24) / 750 (30) / mm (in)
Weight kg (lbs)
2.1(4.6) 2.8 (6.2) 3.5 (7.7) 4.0 (8.8) kg (lbs)
Servo actuator
SU-S PRO
Max. Boat Speed
60 knots
Blade Stroke
30 mm (1.2 in)
Blade Rate
100 mm/s (4 in/s)
Thru-Hull Cable Fitting
Concealed or above waterline
Cable Length
3 m (10 ft), extendable up to 6 m (20 ft)
Cable Material
PUR
Connector
M12 5-pin circular
Connector Diameter
14.5 mm (0.57 in)
Operating Voltage
36 V DC
Power Consumption
35 W max/servo unit
Operating Temperature
0° to +40°C (+32° to +104°F)
Storage Temperature
-40° to +90°C (-40° to +194°F)
Waterproof Rating
IP68 5 m (16 ft)
Compliance
CE, FCC
Model
IT300-S PRO CHINE PORT / IT300-S PRO CHINE STBD / IT450-S PRO CHINE PORT / IT 450-S PRO CHINE STBD
Length mm (in)
300 (12) / 300 (12) / 450 (18) / 450 (18) / 450 (18) / mm (in)
Weight kg (lbs)
2.2(4.9) 2.2 (4.9) 2.9 (6.4) 2.9 (6.4) kg (lbs)
Servo actuator
SU-S PRO
Max. Boat Speed
60 knots
Blade Stroke
30 mm (1.2 in)
Blade Rate
100 mm/s (4 in/s)
Thru-Hull Cable Fitting
Concealed or above waterline
Cable Length
3 m (10 ft), extendable up to 6 m (20 ft)
Cable Material
PUR
Connector
M12 5-pin circular
Connector Diameter
14.5 mm (0.57 in)
Operating Voltage
36 V DC
Power Consumption
35 W max/servo unit
Operating Temperature
0° to +40°C (+32° to +104°F)
Storage Temperature
-40° to +90°C (-40° to +194°F)
Waterproof Rating
IP68 5 m (16 ft)
Compliance
CE, FCC
Model
IT450-S PRO V13 / IT450-S PRO V16 / IT450-S PRO V19 / IT450-S PRO V22
Length mm (in)
450 (18) / 450 (18) / 450 (18) / 450 (18) / mm (in)
Weight kg (lbs)
3.2(7.1) / 3.3 (7.3) / 3.4 (7.5) / 3.5 (7.7) kg (lbs)
Servo actuator
SU-S PRO
Max. Boat Speed
60 knots
Blade Stroke
30 mm (1.2 in)
Blade Rate
100 mm/s (4 in/s)
Thru-Hull Cable Fitting
Concealed or above waterline
Cable Length
3 m (10 ft), extendable up to 6 m (20 ft)
Cable Material
PUR
Connector
M12 5-pin circular
Connector Diameter
14.5 mm (0.57 in)
Supply Voltage
36 V DC
Power Consumption
35 W max/servo unit
Operating Temperature
0° to +40°C (+32° to +104°F)
Storage Temperature
-40° to +90°C (-40° to +194°F)
Waterproof Rating
IP68 5 m (16 ft)
Compliance
CE, FCC
Model
IT300-S PRO INTER
Length mm (in)
300 (11.8) mm (in)
Weight kg (lbs)
2.4(5.3) kg (lbs)
Servo actuator
SU-S PRO
Max. Boat Speed
60 knots
Blade Stroke
30 mm (1.2 in)
Blade Rate
100 mm/s (4 in/s)
Thru-Hull Cable Fitting
Concealed or above waterline
Cable Length
3 m (10 ft), extendable up to 6 m (20 ft)
Cable Material
PUR
Connector
M12 5-pin circular
Connector Diameter
14.5 mm (0.57 in)
Supply Voltage
36 V DC
Power Consumption
35 W max/servo unit
Operating Temperature
0° to +40°C (+32° to +104°F)
Storage Temperature
-40° to +90°C (-40° to +194°F)
Waterproof Rating
IP68 5 m (16 ft)
Compliance
CE, FCC

ORDERING DATA SERIES S PRO

Model
Part No.
IT300-S PRO
2021232, COMES WITH CABLE 3 M AND CABLE COVER
IT450-S PRO
2021233, COMES WITH CABLE 3 M AND CABLE COVER
IT600-S PRO
2021234, COMES WITH CABLE 3 M AND CABLE COVER
IT750-S PRO
2021235, COMES WITH CABLE 3 M AND CABLE COVER
  • Included in Kit Boxes
  • Available as an Accessory
  • Available as a Spare Part
Model
Part No.
IT300-S PRO CHINE PORT
2021702 Comes with Cable 3 m and Cable Cover
IT300-S PRO CHINE STBD
2021703 COMES WITH CABLE 3 M AND CABLE COVER
IT450-S PRO CHINE PORT
2021704 COMES WITH CABLE 3 M AND CABLE COVER
IT450-S PRO CHINE STBD
2021705 COMES WITH CABLE 3 M AND CABLE COVER
  • Included in Kit Boxes
  • Available as an Accessory
  • Available as a Spare Part
Model
Part No.
IT450-S PRO V13
2021482 Comes with Cable 3 m and Cable Cover
IT450-S PRO V16
2021483 COMES WITH CABLE 3 M AND CABLE COVER
IT450-S PRO V19
2021484 COMES WITH CABLE 3 M AND CABLE COVER
IT450-S PRO V22
2021485 COMES WITH CABLE 3 M AND CABLE COVER
  • Available as an Accessory
  • Available as a Spare Part
Model
Part No.
IT300-S PRO INTER
2021701 COMES WITH CABLE 3 M AND CABLE COVER
  • Available as an Accessory
  • Available as a Spare Part
