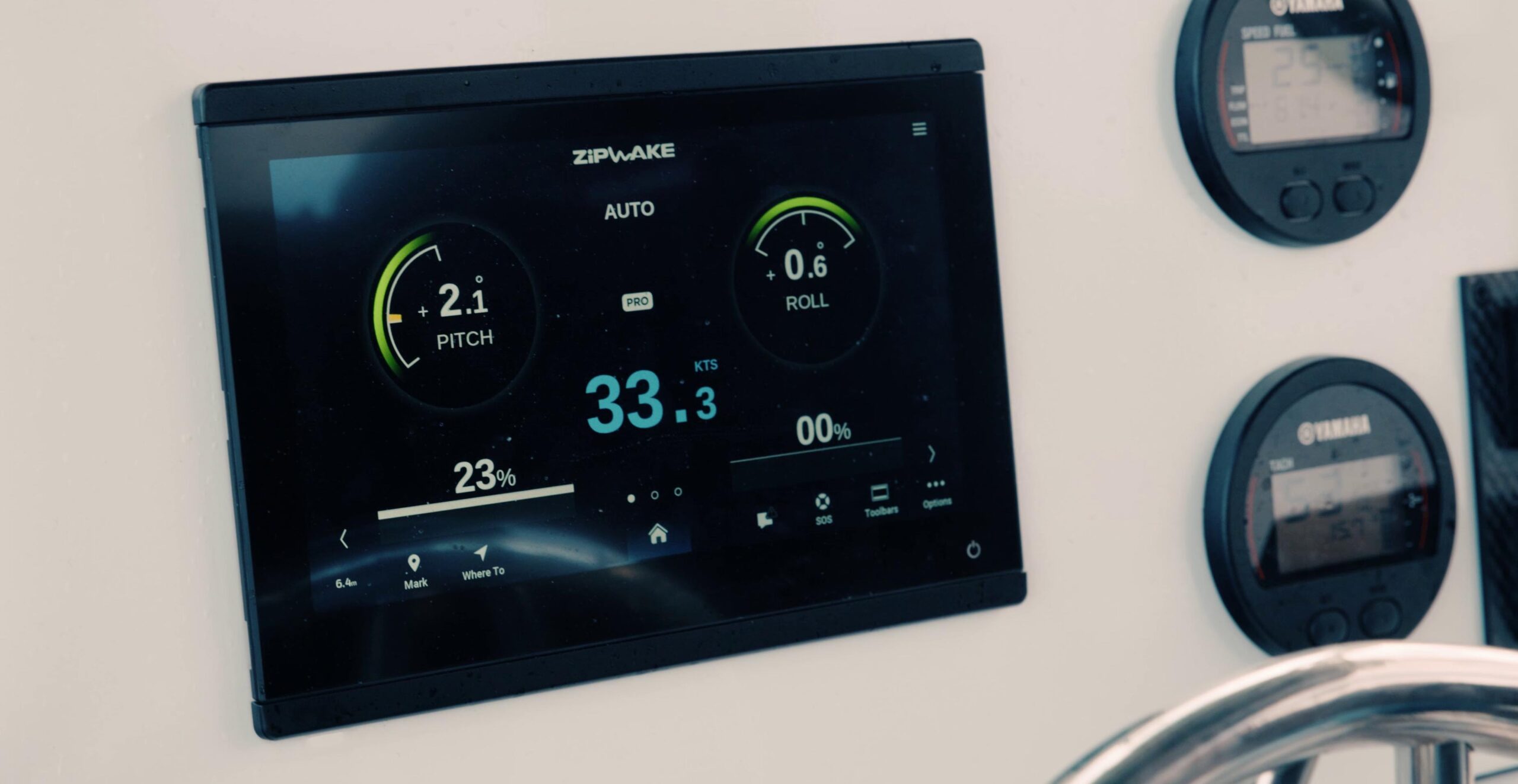

Dashboard with a Simrad MFD connected to Zipwake Integrator module.
Integrator module mounted in a boat.

INTEGRATOR MODULE

Seamlessly connect your Zipwake system to multifunctional displays (MFDs) and smart devices. The Integrator Module gives you intuitive, easy control and keeps your dashboard clean.

Find distributors

FUTURE-PROOF YOUR BOAT

Zipwake has been revolutionizing boating since day one, starting with the release of our Dynamic Trim Control Solution. Now we’ve done it again. As boat designs trend toward clean dashboards, larger displays, more flexibility and increased system integration, Zipwake’s new Integrator Module gives boat owners a future-proof solution.

SEAMLESS INTEGRATION

Create your perfect set-up. The Integrator Module seamlessly connects the Zipwake system to multiple MFDs from different manufacturers – and even connects wirelessly to smart devices – keeping dashboards free of clutter. But it also offers the flexibility of connecting up to 3 control panels for operation via control wheels in addition to touch screens. A CAN interface enables further external system integration.

WIRELESS CONNECTIVITY

For even greater control, the Integrator Module’s wireless interface lets you configure, operate, monitor, and update the system wirelessly via the Zipwake app on your smartphone or tablet.

EASY TO INSTALL – ANYWHERE

Just slightly bigger than a postcard, the discreet Integrator Module is easy to install behind the helm/dash, on the flybridge or in the engine room. It’s waterproof and comes with a special ethernet connector collar that makes sealing standard ethernet cables easy. A single cable connects the unit to an MFD.



DOWNLOAD LEAFLET

the perfect complement

Rain, wind and waves – when the weather doesn’t cooperate, touchscreens can be difficult to use. The Mini Controller lets you operate your Zipwake trim control system without having to reach for an MFD.

LEARN MORE

Short facts

FULLY AUTOMATIC

WATERPROOF

WIRELESS UPGRADABLE

  • Fully automatic dynamic pitch and roll control
  • Steering and turn enhancement
  • Motion sensors and magnetic compass
  • Instant state user feedback
  • Auto power on/off via ignition key sense
  • Waterproof design
  • RGB Led status indicators for each interface
  • Wireless upgradable via smartphones/tablets
  • Supports up to three additional Control Panels in the system
  • Compatible with all Zipwake system components
  • Manages installation configurations from 1 up to 6 Series-E dual-servo interceptors or any mix with single-servo interceptors
  • Allows configuration of interceptor pair function
  • 3D Gyro & accelerometers
  • Monitored and/or controlled from external devices like MFD/Smartphones/Tablets and Plotters via NMEA 2000 interface
Two individuals standing in a boat as it glides across a serene lake adorned with beautiful scenery.

SPECIFICATIONS

Model
IM
Indicators
RGB LEDs for each communication interface (x4) RGB backlit logo
Internal sensors
3D Gyro, 3D Accelerometer, Compass
Supply Voltage
12 - 32 V DC
Power Consumption
4 W max
Operating Temperature
-20° to +85°C (-4° to +185°F)
Storage Temperature
-40° to +90°C (-40° to +194°F)
Waterproof Rating
IP67
Compass Safe distance
0.5 m (1.7 ft)
Compliance
CE, FCC, SAE J1171 Ignition Protected
Weight
0.35 kg (0.77 lbs)

ORDERING DATA

Model
Part No.
IM
2012241
  • Included in Kit Boxes for integration
  • Available as an Accessory
  • Available as a Spare Part
